15A双路电机驱动模块大功率H桥 刹车功能直流电机驱动板双路

15A双路电机驱动模块

本驱动器性能非L298这些电机驱动芯片所能比拟的，本驱动器注重电流和效率，有效发挥电机功率和电池使用时间。能承受大电流过载，最大电流可达30A。

此驱动器还具有的刹车功能可迅速将电机刹住，刹车迅速，制动明显，实现此功能操作简单。

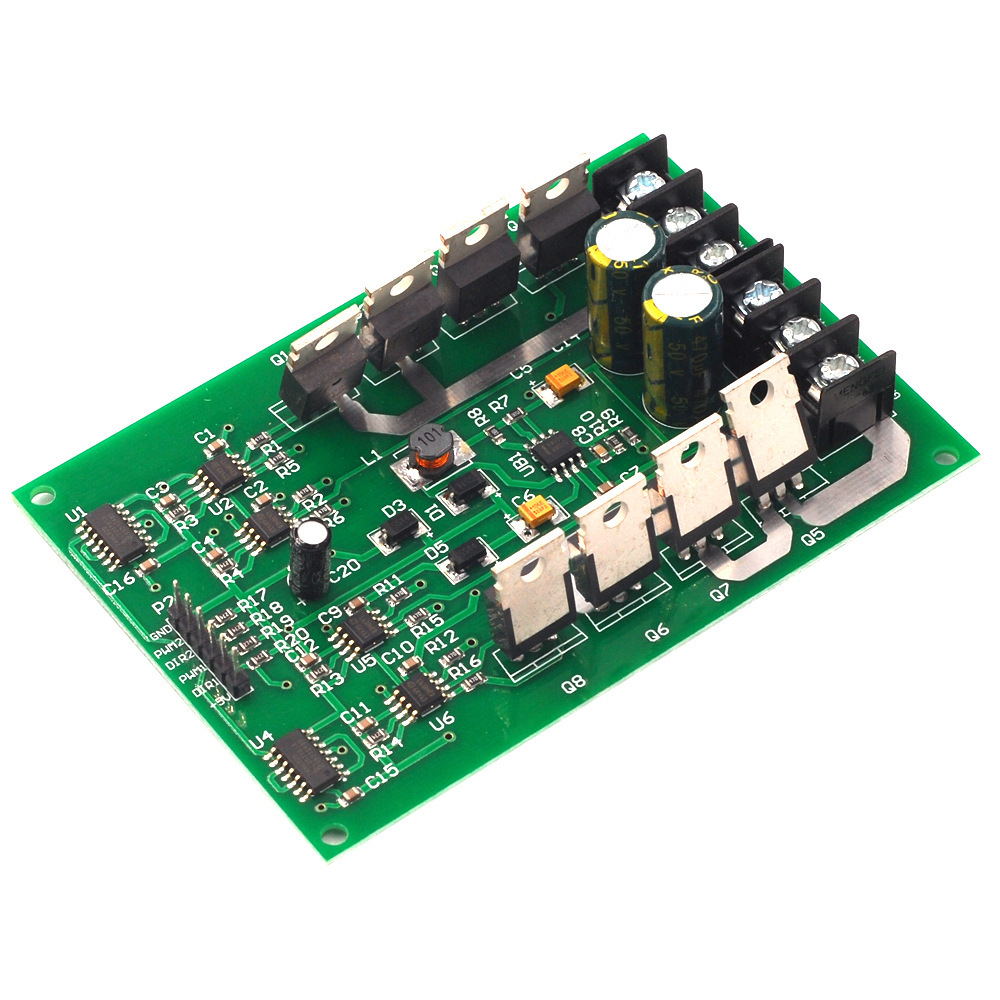

本驱动器采用完整的两片半桥驱动芯片＋极低内阻的N沟道MOSFET组成。完整的两片半桥驱动芯片可靠的驱动方式，使MOSFET的开关损耗降至最低。提高电源利用率。MOSFET驱动芯片自带硬件刹车功能和电能反馈功能。

本驱动器优于集成功率芯片方案功率余量低和其他半桥组合方案中时序协调复杂问题和互补驱动问题。

MOSFET采用N沟道IRF3205 MOSFET，使用两片专用半桥驱动芯片，对上管采用自举电容，使上管有足够的驱动电压，可快速使MOSFET沟道打开，提高电机的加速曲率，同时也能迅速的为电机制动。这可以使的的小车能迅速启动也能迅速杀车。

本驱动器可以工作在0％-99％的PWM调制占空比，使电机可以得到足够的驱动电压。

电机正转：DIR=1 PWM=PWM

电机反转：DIR=0 PWM=PWM

停车刹车：DIR=X PWM=0(X为任意状态)

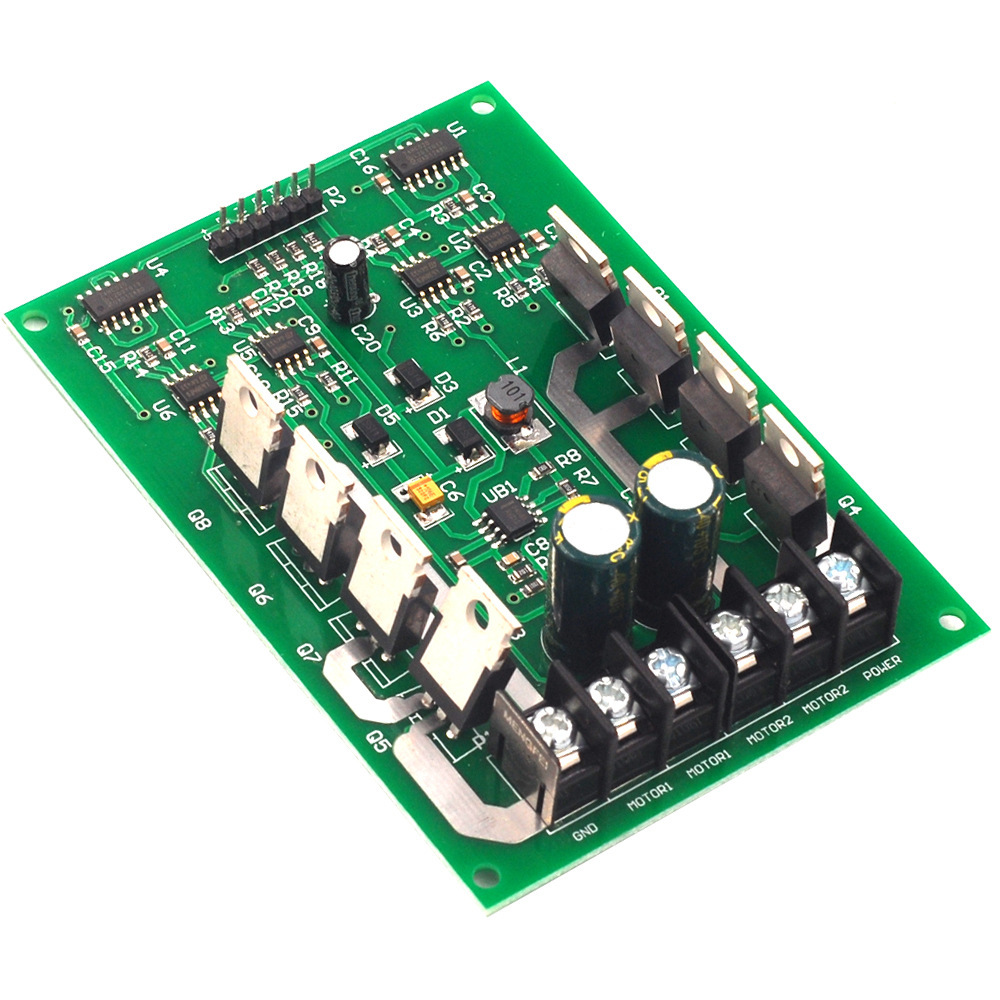

POWER接电源的正极，GND接电源负极。两路电机分别接MOTOR1,MOTOR2

产品性能参数：

额定电压：3v-36v

额定电流：15A

峰值电流：30A

尺寸：长100mm，宽70mm

重量：56.88g

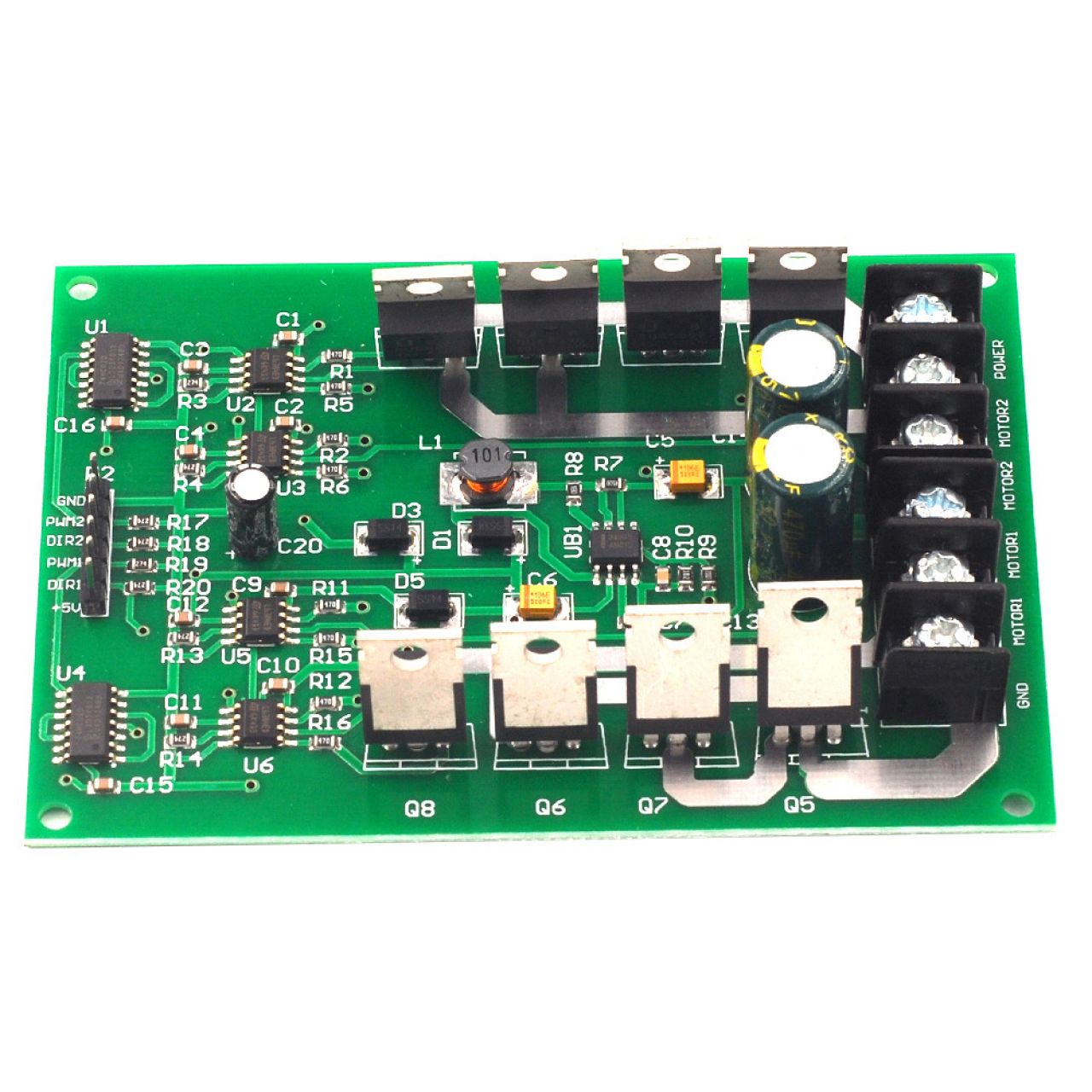

EN1、EN2分别为两路的使能端，低电平有效；DIR1、DIR2分别为两路控制方向，PWM1、PWM2分别为两路控制速度，PWM为0到100%，越大速度越快

 EN DIR PWM转向  1// 停止 01 pwm 正转 00 pwm 反转 0X 0 刹车

OWER接电源的正极，GND接电源负极。两路电机分别接MOTOR1,MOTOR2

Description:

Parking brake: DIR = X PWM = 0 (X is an arbitrary state)

Motor forward: DIR = 1 PWM = PWM

The drive performance of these non-L298 motor driver chip can be compared.

The driver focus on current and efficiency, effectively motor power and battery life.

Can withstand high current overload, the maximum current up to 30A

This drive also has a brake function can be quickly stopped the motor, brake quickly, braking obvious, easy to implement this feature

The drive uses the full two half-bridge driver chip + low resistance N-channel MOSFET components.

Completer two half-bridge driver chip reliable drive mode, the MOSFET switching losses to a minimum. Improve power utilization.

MOSFET driver chip comes with hardware brake function and power feedback.

This drive is superior integrated low power chip solution and the other half-bridge power margin in the coordinated combination of programs and complex issues and complementary drive problems

N-channel MOSFET IRF3205 MOSFET, use two dedicated half-bridge driver chip on the top tube using the boostrap capacitor, so that the tube has enough drive voltage of the MOSFET channel can be opened quickly, improve motor acceleration curvature, but also quickly for the motor brake. This allows the trolley can quickly start can quickly kill the car.

The driver can operate at 0-99% of the duty cycle of the PWM modulation, the motor driving voltage can be obtained sufficiently.

Motor reversal: DIR = 0 PWM = PWM

POWER connected to the positive power supply, GND power supply is negative. Two motors were connected MOTOR1, MOTOR2

Motor and power connections

Use: Freescale smart car contest Undergraduate Electronic Design Contest variety of DC motor control circuit

Rated Current: 10A

Rated voltage: 3v-36v (can be customized according to the user)

Peak current: 30A

Dimensions: length 108mm*58mm width
